Chamber Diaphragm Filter Press
Ultimate Automated Dewatering & Solid-Liquid Separation
Introducing our state-of-the-art Chamber Diaphragm Filter Press, perfect for:
- Mining tailings dewatering
- Chemical sludge treatment
- Municipal biosolids processing
- Food-grade oil & beverage filtration
- Pharmaceutical ingredient clarification
Product Overview & Key Descriptors
- Automated PLC Control with touchscreen HMI for recipe management and remote monitoring
- Energy-Saving Hydraulics reducing power consumption by up to 40%
- Rapid Cycles 4–8 minute filtration, squeeze, and discharge stages
- Modular Design expandable from 30 to 200+ chambers
- Corrosion-Resistant SS304/316 or polypropylene plates
- Hygienic Construction CIP/SIP compatibility for food & pharma
- Safety & Compliance CE/UL certifications, overpressure protection, emergency stop

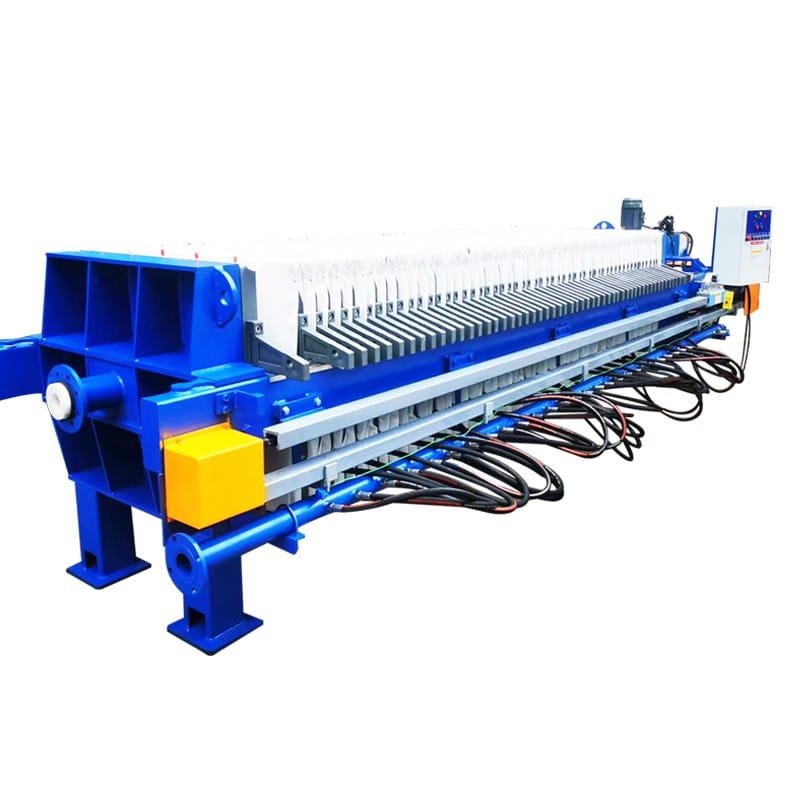

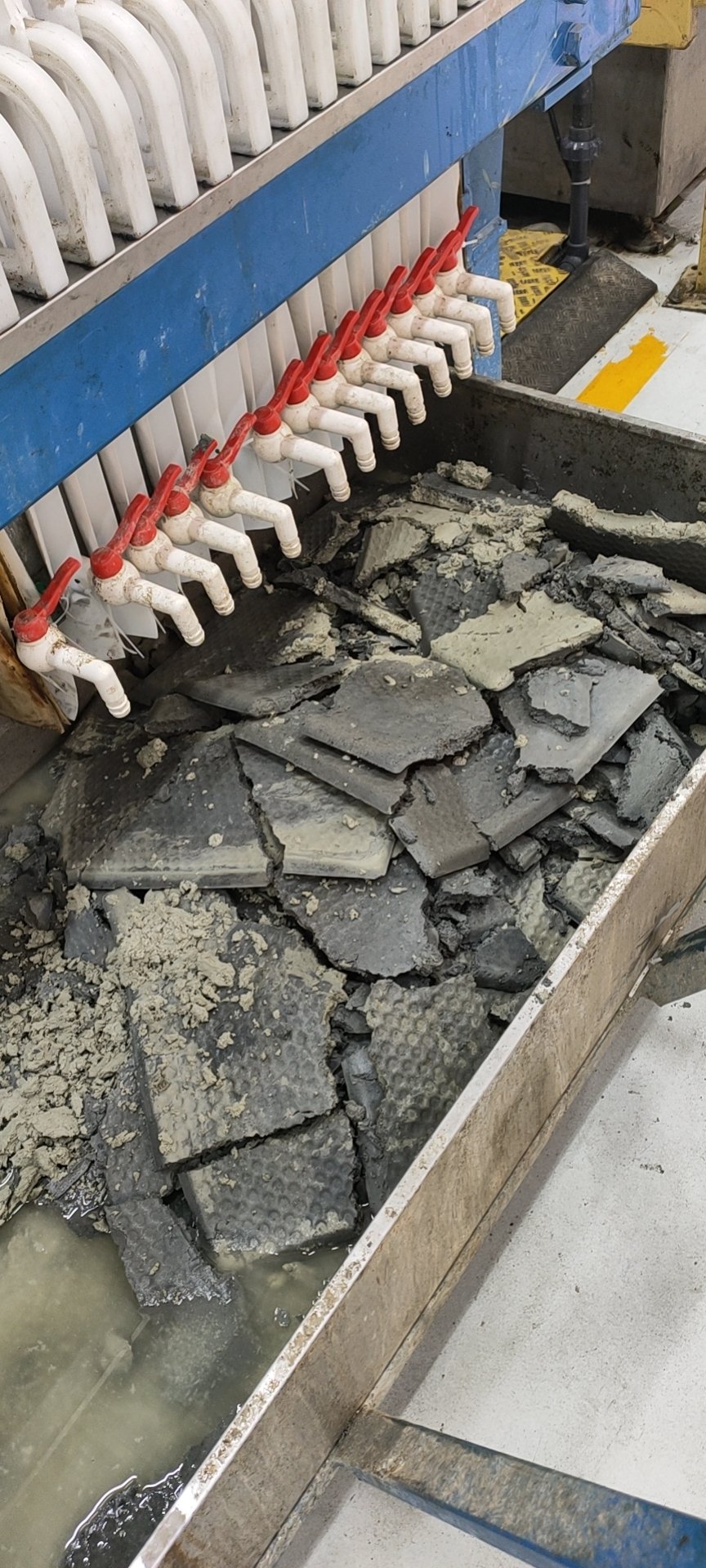

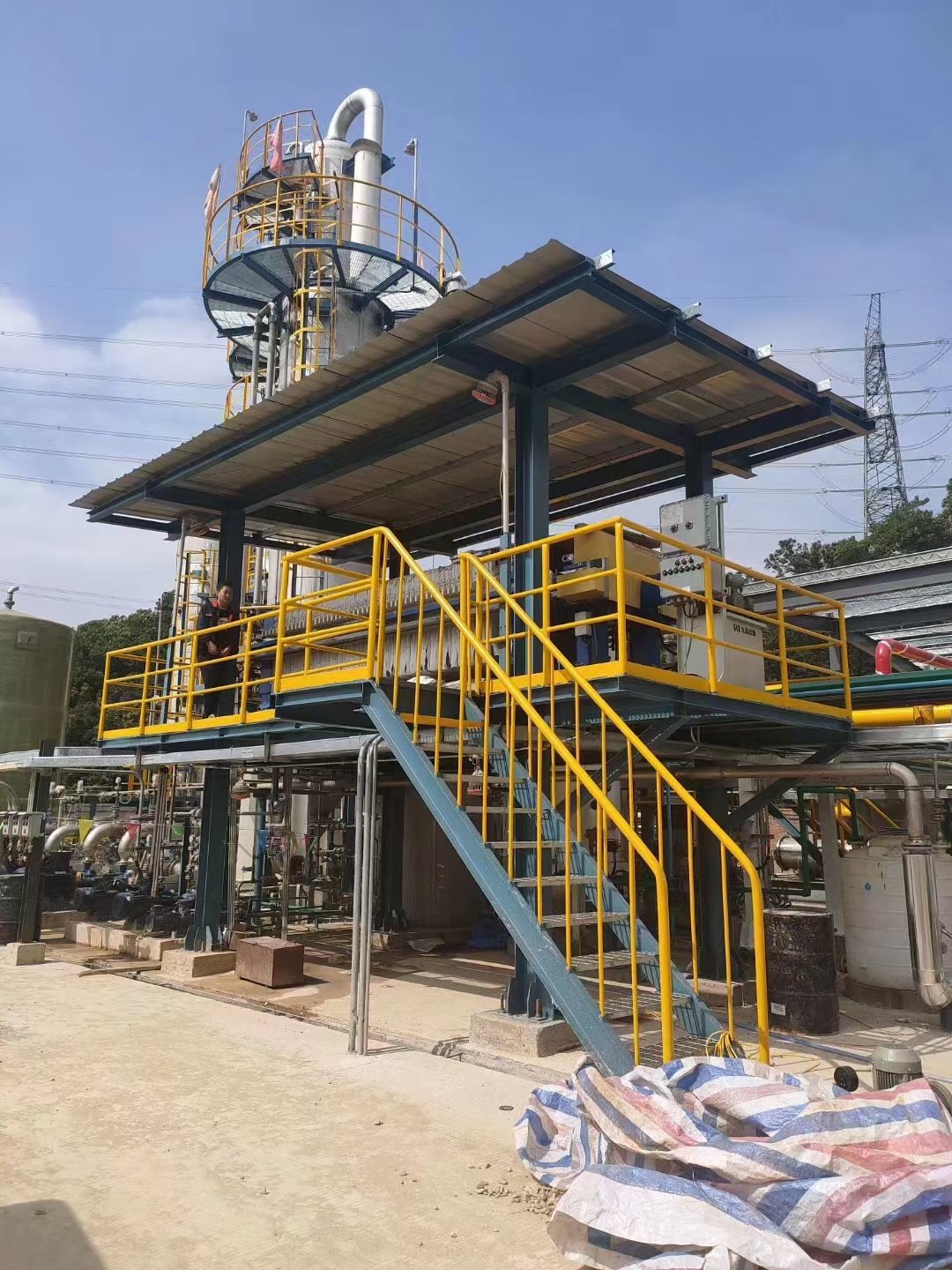

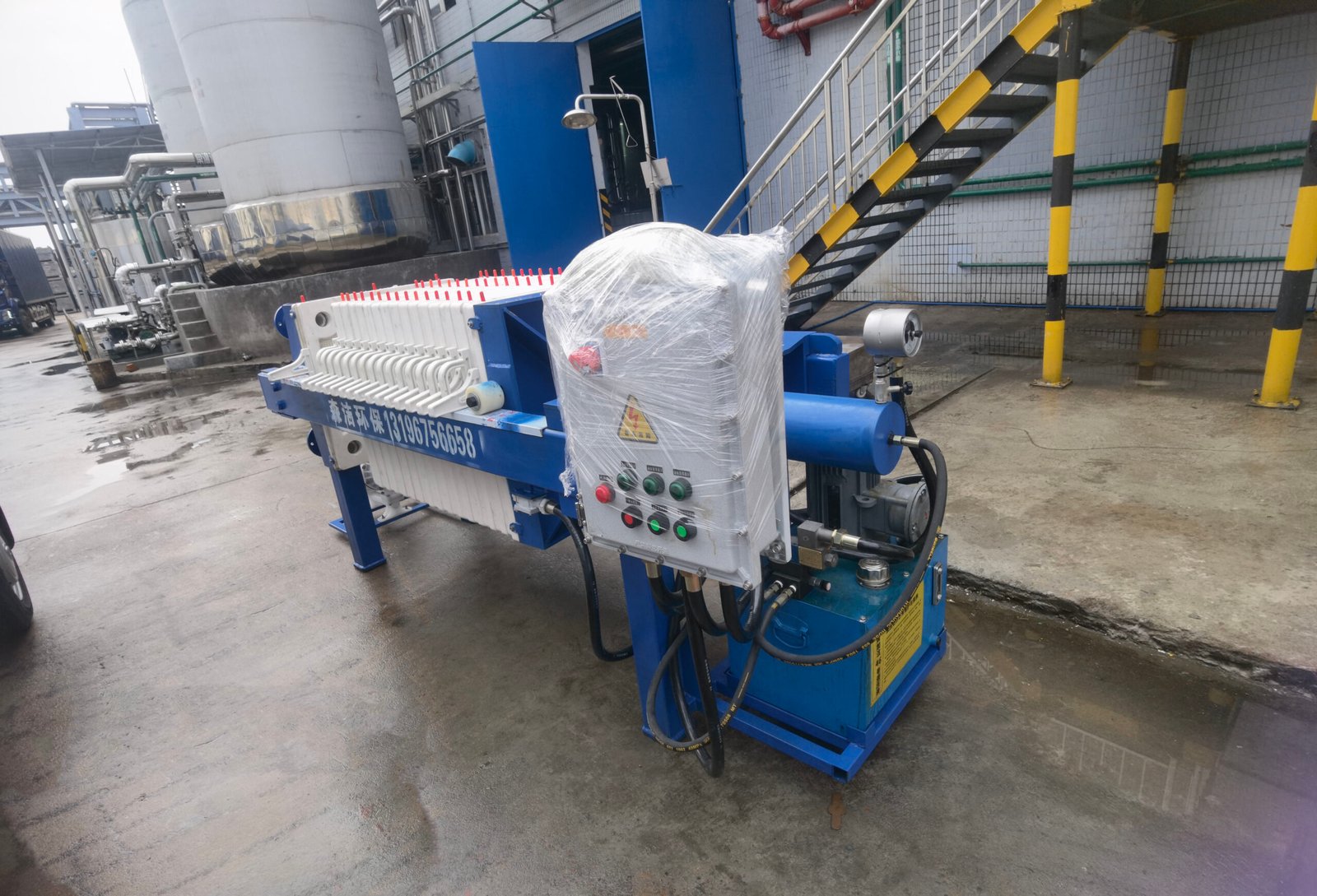

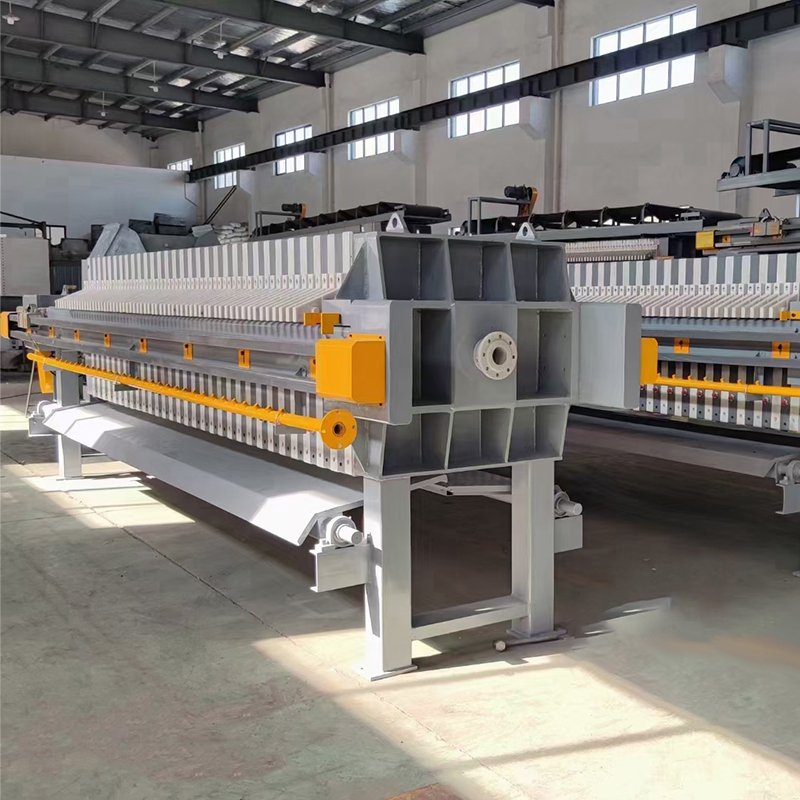

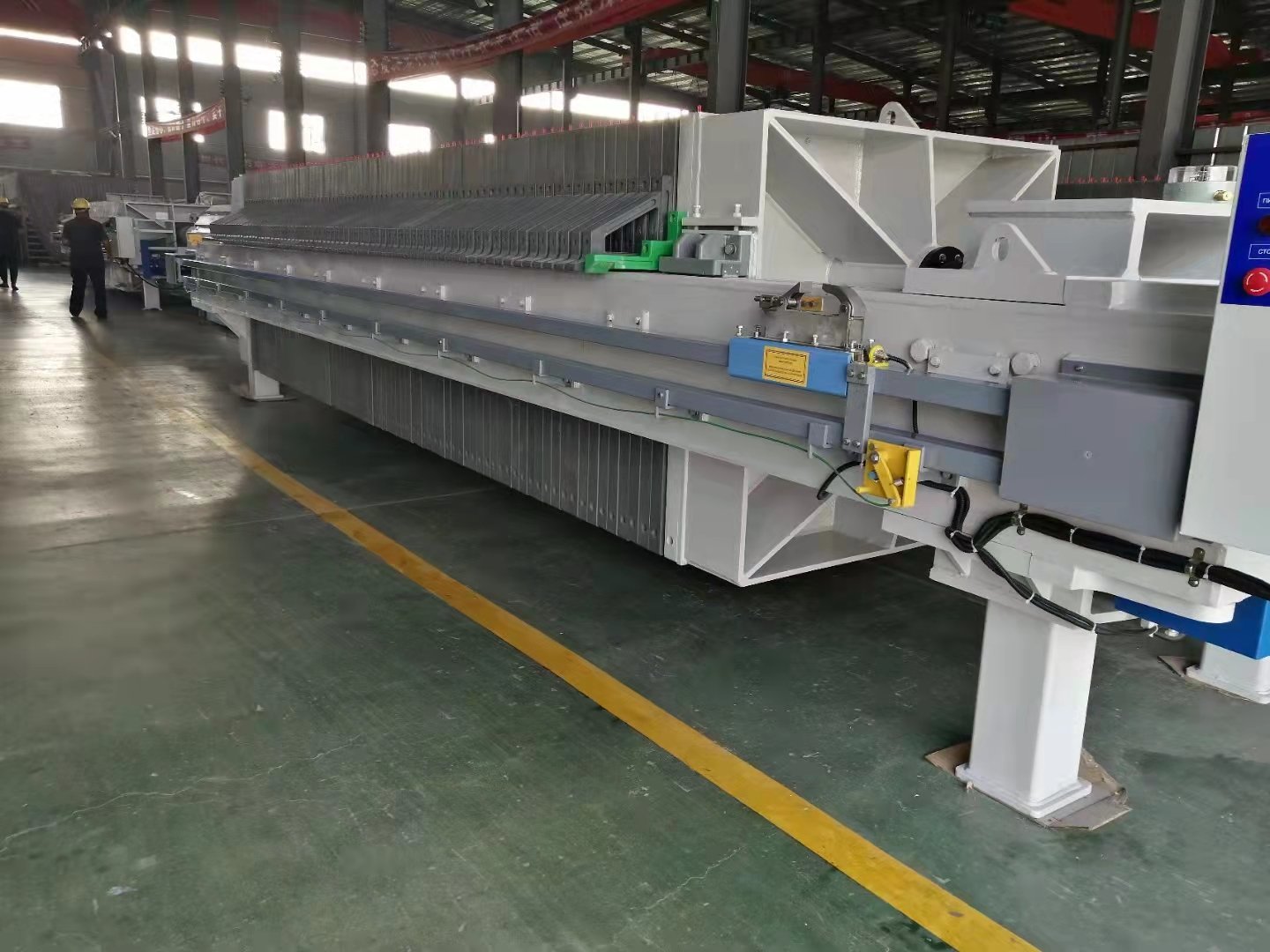

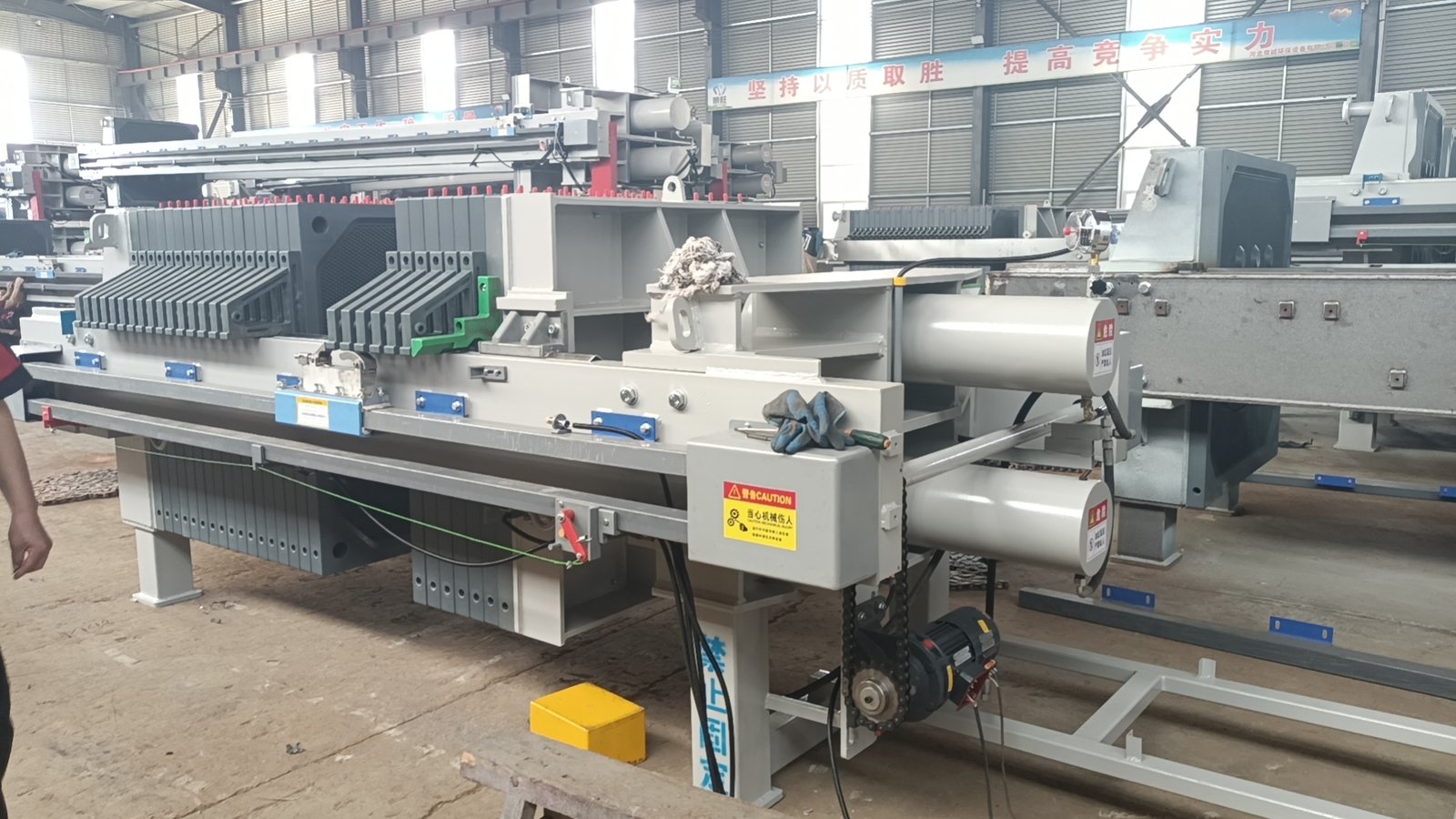

Product Gallery
Working Principle
- Pressurization: Hydraulic oil inflates diaphragms, sealing each chamber to 7 bar.
- Filtration: Slurry is pumped in; solids form cake on filter cloth as filtrate exits.
- Squeeze Phase: Increased pressure squeezes out residual moisture.
- Decompression: Diaphragms deflate, opening chambers.
- Discharge: Cake drops out under gravity and slight vibration.
- Repeat: Automatic resealing starts the next cycle.
Applications
- Mining tailings & mineral processing sludge
- Chemical & petrochemical wastewater sludge
- Municipal sewage & biosolids treatment
- Food & beverage byproduct filtration
- Pharmaceutical clarification
Advantages
- Up to 99% filtrate recovery for water recycling
- Cake moisture down to 35–45% for reduced disposal
- 4–8 minute cycles for high throughput
- Low maintenance: quick-release plates & washable cloths
- Compact footprint for easy installation
Chamber Filter Plate
- Precision-molded polypropylene or SS304/316
- High-pressure seal rings for zero leakage
- Optimized flow channels for uniform cake
- Quick-change handles (<5 min)
- Optional PTFE coating for sticky slurries
Diaphragm Assembly
- Reinforced elastomer for deep squeeze
- Chemical & heat resistant rubber compound
- Modular drop-in design for easy replacement
- Double-rib structure for enhanced durability
Hydraulic Power Pack
- PLC-controlled pump with touchscreen HMI
- Variable displacement pump for energy savings
- Hydraulic oil filtration protects components
- Integrated oil cooler for continuous operation
Control System
- Remote SCADA & cloud monitoring
- Real-time data logging & analytics
- SMS/email fault alerts & maintenance reminders
- Recipe management for different slurries
Technical Specifications
Dimension Table
| Model | Plate Size (mm) | Chambers | Area (m²) | Max Pressure (bar) |
|---|---|---|---|---|
| CPDP-30 | 600×600 | 30 | 0.36 | 7 |
| CPDP-60 | 800×800 | 60 | 0.64 | 7 |
| CPDP-100 | 1000×1000 | 100 | 1.00 | 7 |
Performance Table
| Model | Throughput (m³/h) | Cake Moisture (%) | Cycle Time (min) | Motor (kW) |
|---|---|---|---|---|
| CPDP-30 | 4 | 35–45 | 6 | 4 |
| CPDP-60 | 8 | 35–45 | 7 | 7.5 |
| CPDP-100 | 12 | 35–45 | 8 | 11 |
Our Projects
Automotive Parts Plant
60-chamber press reduced disposal costs by 30% and boosted water recycle to 90%+
Edible Oil Refinery
Food-grade stainless press doubled throughput and ensured HACCP compliance.
Municipal Wastewater Treatment
Stable dewatering at 2–4% solids and 25% lower handling costs.
Pharmaceutical Manufacturer
Enclosed diaphragm press prevented cross-contamination and ensured filtrate quality.
