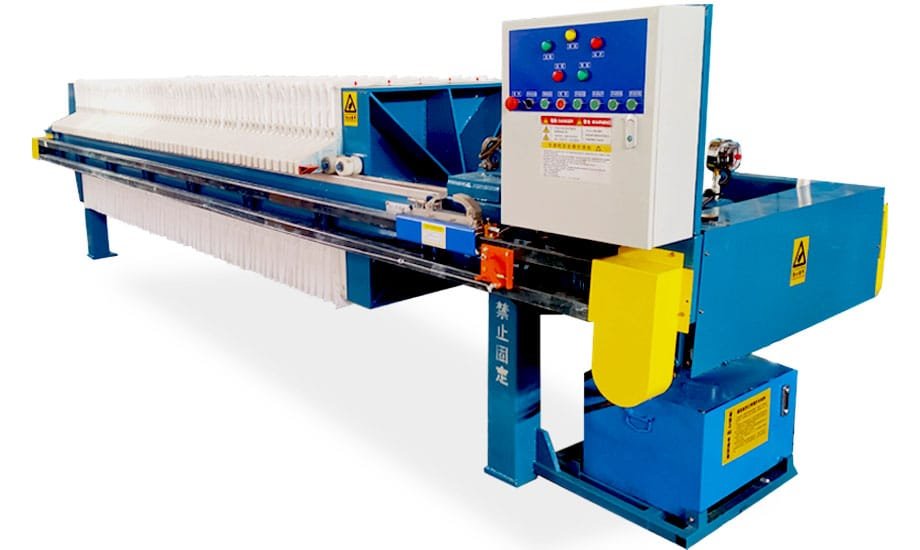

Chamber Filter Press
High-efficiency chamber (box-type) filter press with intelligent hydraulic control and ultra-dry cake. Ideal for mining, chemical, municipal, food-grade, and pharmaceutical applications.
View SpecificationsHow It Works
Hydraulic pressure (6–8 bar) closes box-type filter plates into sealed chambers. Slurry fills each chamber and solids build on the cloth while clear filtrate exits through channels. The press then opens to discharge the cake—automating the cycle for continuous dewatering.
Applications & Benefits
Mining Tailings
Efficient dewatering for metal recovery and environmental compliance.
Chemical Sludge
Corrosion-resistant design for harsh industrial effluents.
Municipal Sludge
Reliable dewatering and filtrate recycling for treatment plants.
Food & Beverage
Hygienic filtration of oils and beverages to strict standards.
Pharmaceutical
Fine separation for active ingredient recovery and clarity.
Key Components

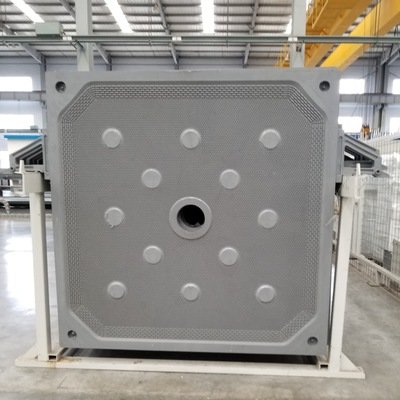

Filter Plates
Precision-molded polypropylene plates forming sealed chambers for optimal cake support.
Heavy-Duty Frame
Robust steel frame providing uniform plate pressure and long service life.
Technical Specifications
Dimensions & Configurations
| Model | Plate Size (mm) | Filtration Area (m²) | Max Pressure (MPa) | Plate Count |
|---|---|---|---|---|
| CFP-30 | 600 × 600 | 0.36 | 0.8 | 30 |
| CFP-60 | 800 × 800 | 0.64 | 0.8 | 60 |
| CFP-100 | 1000 × 1000 | 1.00 | 0.8 | 100 |
Performance Data
| Model | Throughput (m³/h) | Cake Moisture (%) | Cycle Time (min) | Power (kW) |
|---|---|---|---|---|
| CFP-30 | 4 | 45–50 | 6 | 4 |
| CFP-60 | 8 | 42–48 | 7 | 7.5 |
| CFP-100 | 12 | 40–45 | 8 | 11 |

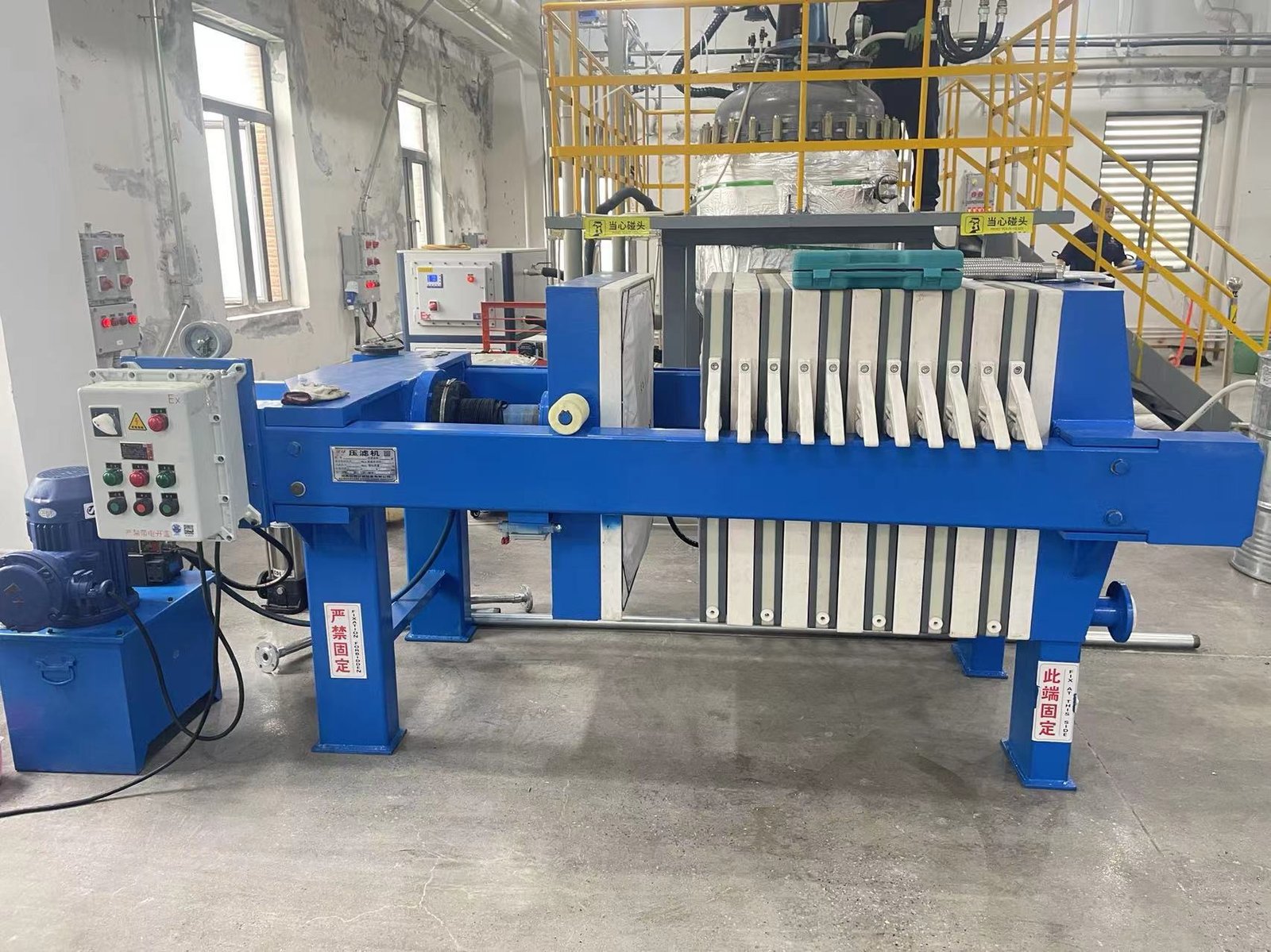

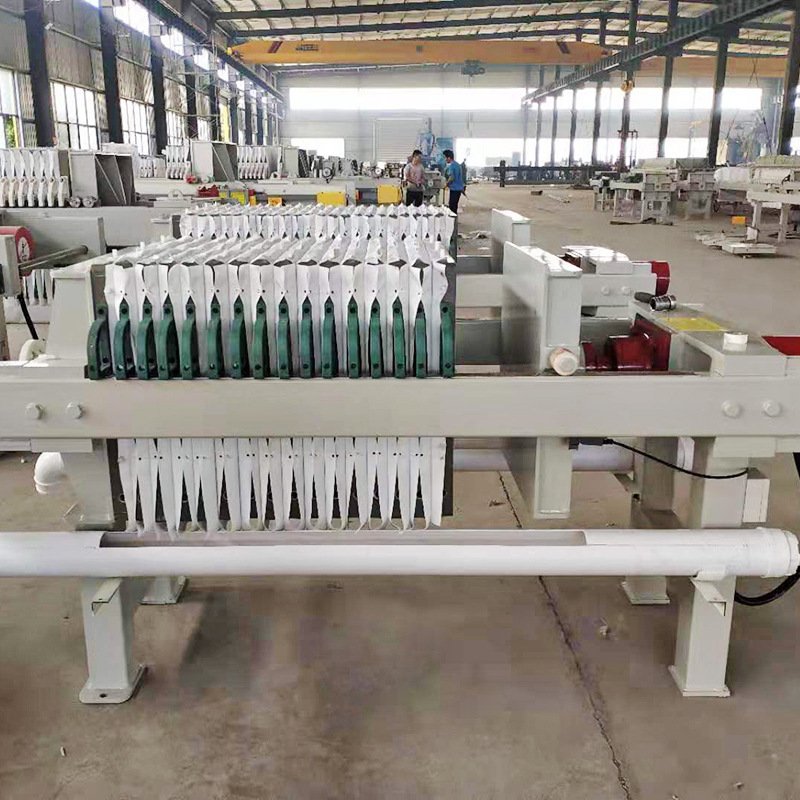

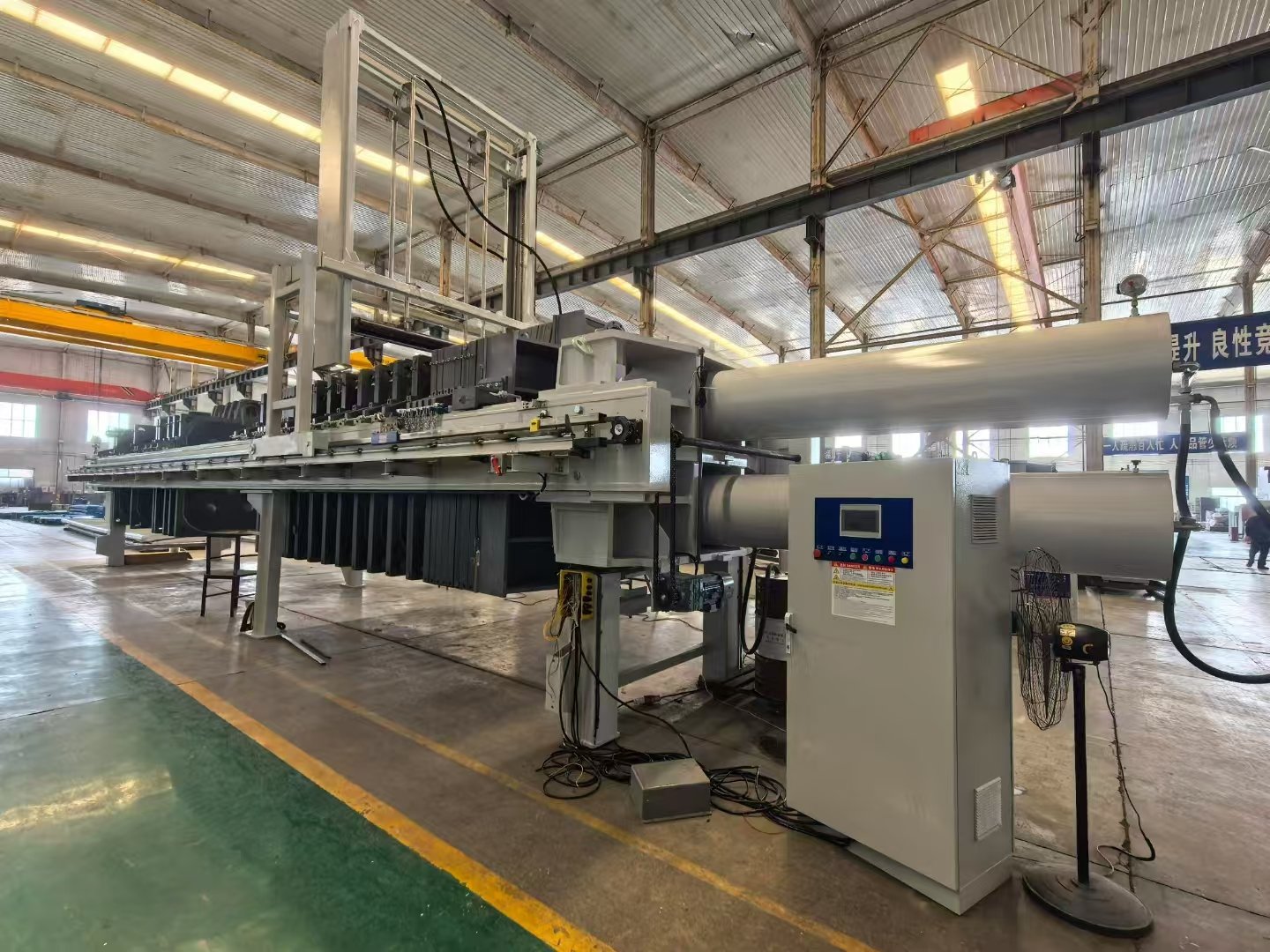

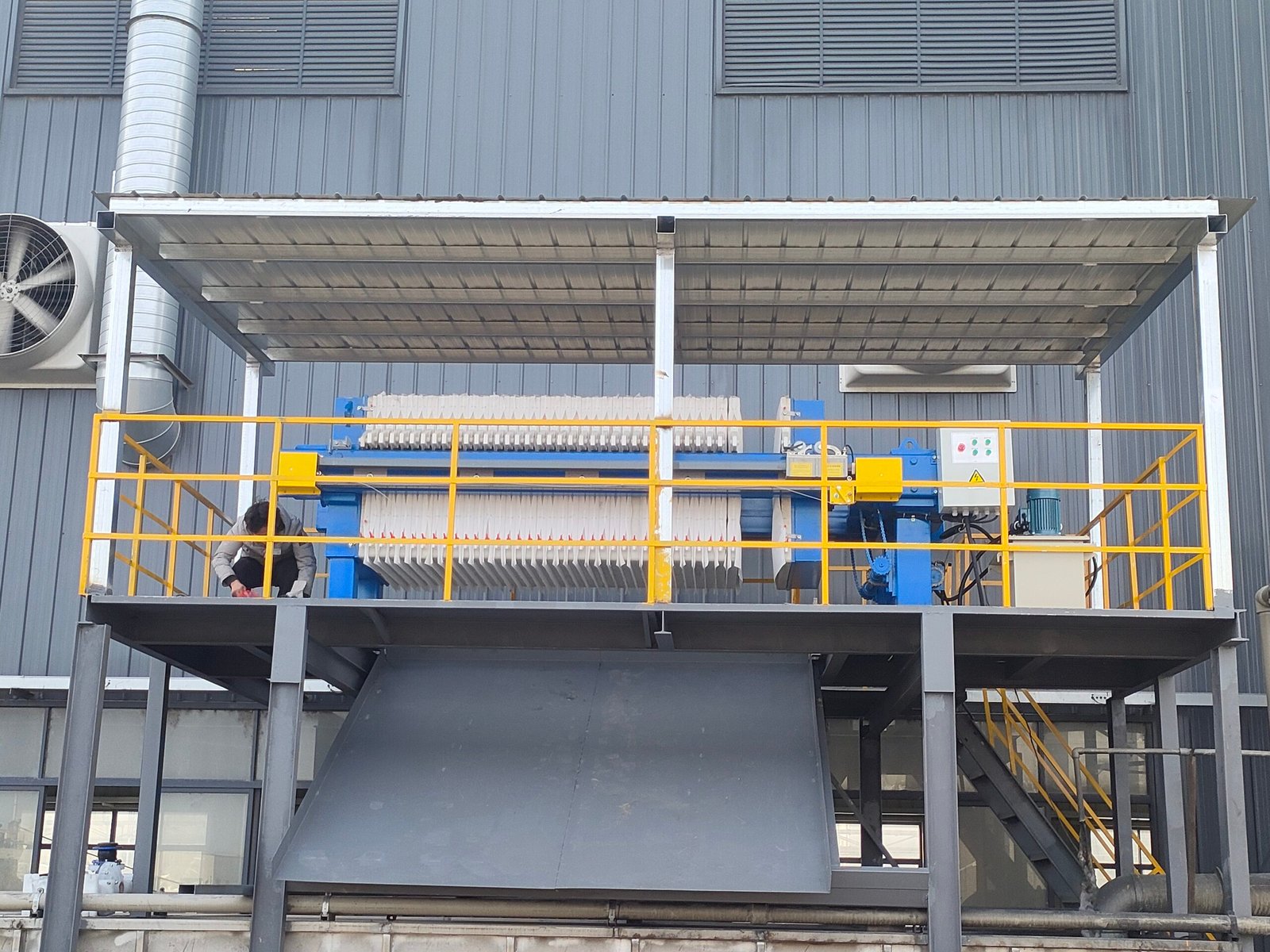

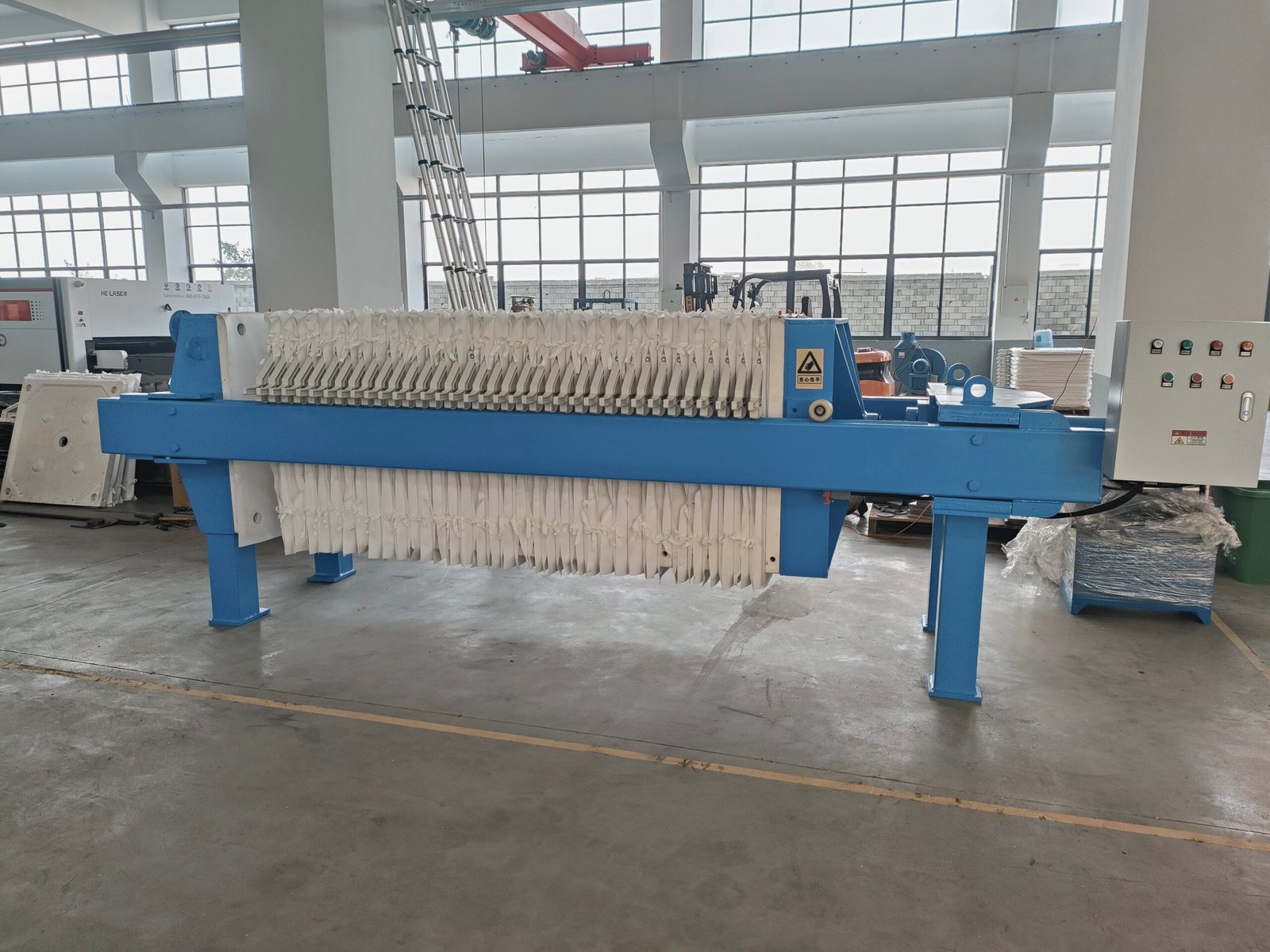

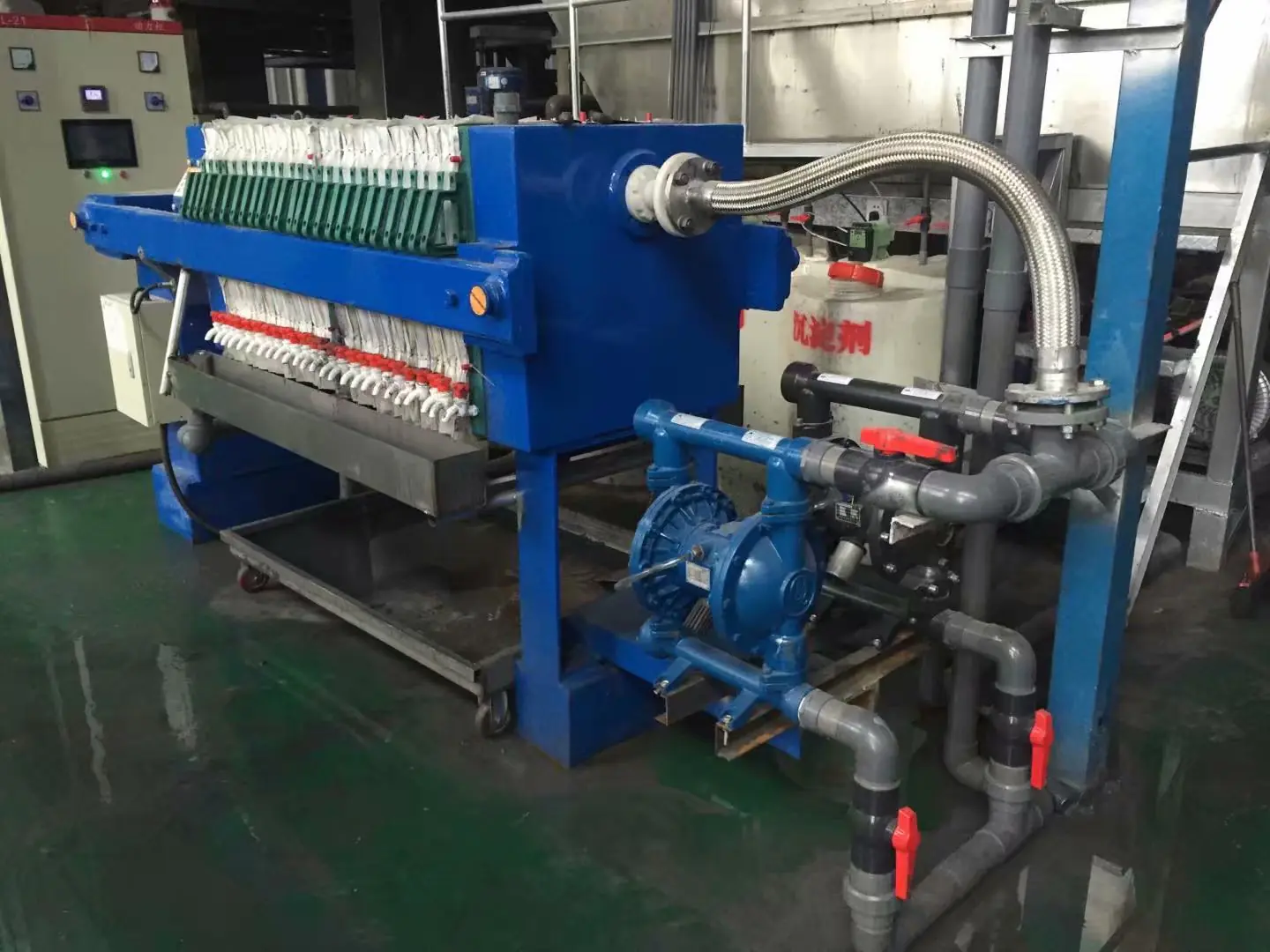

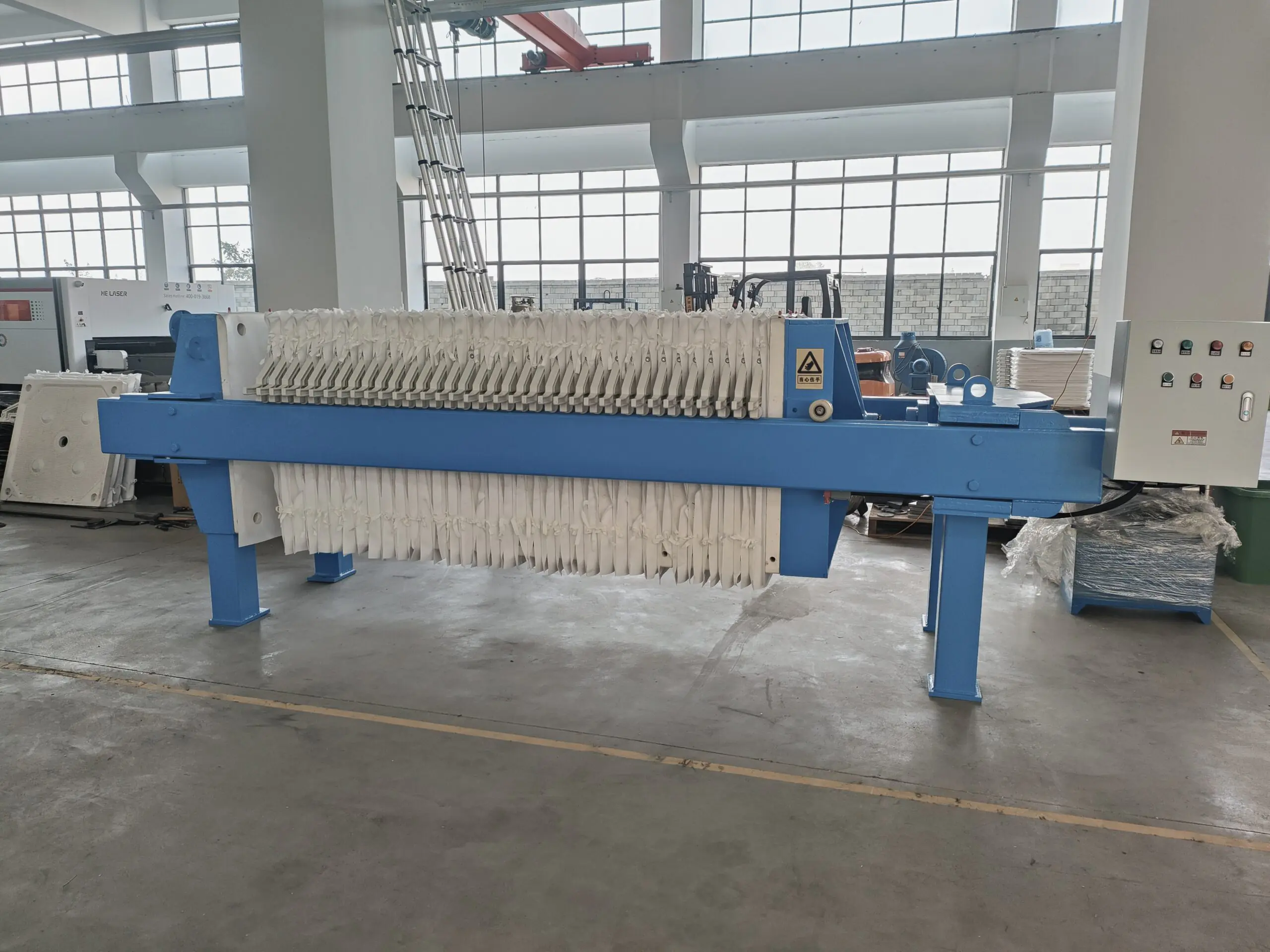

Product Gallery
